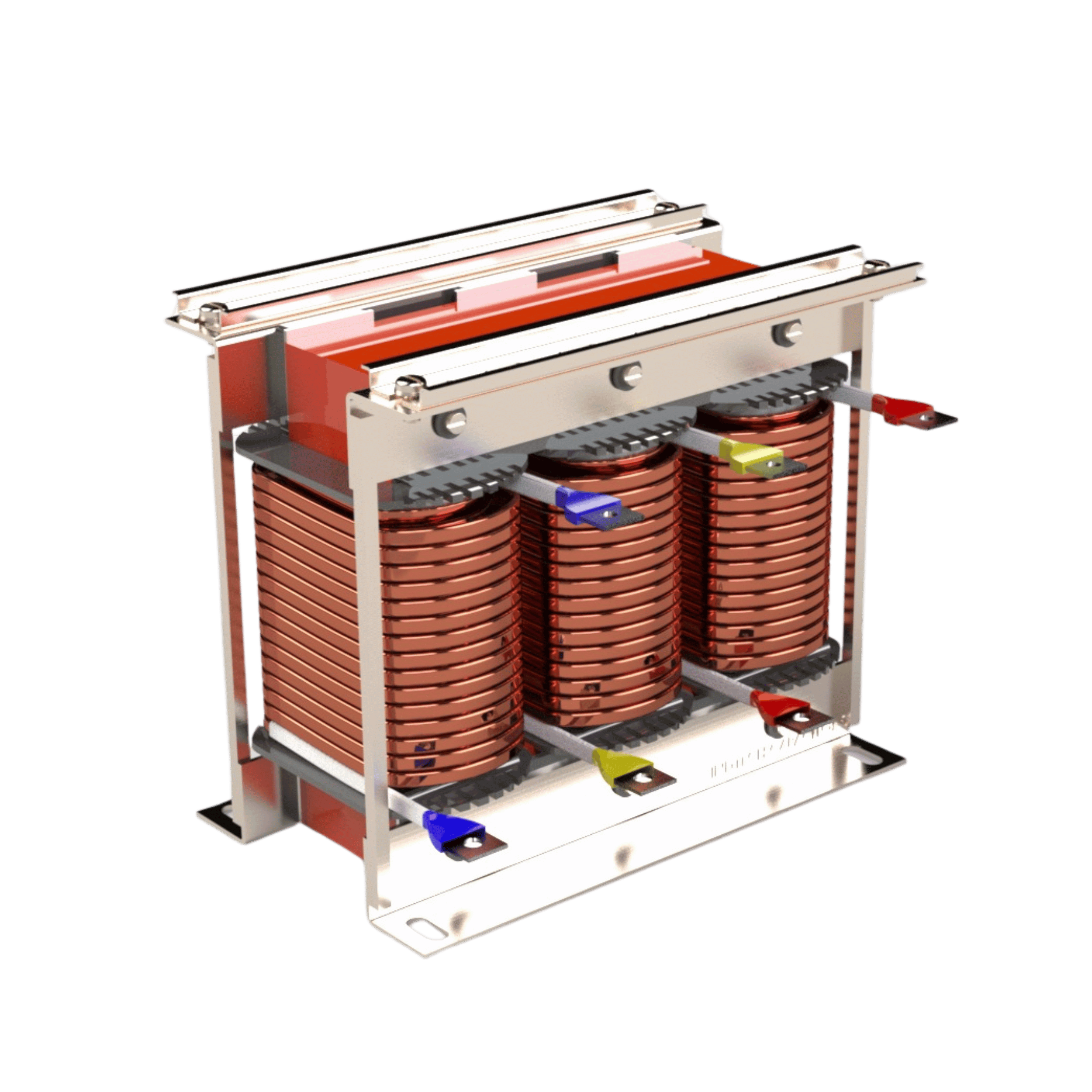

Filter Circuit Detuned Reactor
Range: 1 MFD to 3000 MFD 50Hz,
450V DC to 3000V DC
450V DC to 3000V DC
Download our complete brochure
We are a world class manufacturer and exporter of Capacitors and Power Factor Correction Capacitors providing the best quality products and services to our customers.
Filter circuits, also known as detuned reactors, are critical components used to mitigate harmonic distortion in electrical networks. They provide reactive power compensation at the fundamental frequency while preventing harmonic currents from overloading capacitors. This results in a more stable and efficient power supply, especially in applications with significant non-linear loads.
- Harmonic Mitigation: Effectively prevents harmonic amplification, protecting capacitors and other components from harmonic currents.
- Reactive Power Compensation: Provides reactive power compensation at the fundamental frequency, improving overall power quality.
- High Inductive Impedance: Offers high inductive impedance to harmonic frequencies, ensuring effective filtering.
- System Stability: Enhances the stability and reliability of the electrical network by reducing harmonic content.
- Thermal Management: Equipped with efficient cooling mechanisms to manage heat dissipation during operation.
- Easy Integration: Designed for seamless integration with existing power factor correction systems and capacitor banks.
- Durable Construction: Robust construction ensures long-lasting performance and reliability in demanding environments.
| Range | : | 5kVAr to 100kVAr |
| Filter Factor | : | 5% to 14% |
| Rated Voltage | : | 440V AC to 690V AC |
| Type | : | Aluminium/Copper Wound |
| Reference Standards | : | IS 5553 / IEC 60076 |
| Terminals | : | Tin Plated terminals for connections |
| Noise Level | : | 60dB at rated load |
| Value Accuracy | : | <3% |
| Insulation Class | : | F & H |
