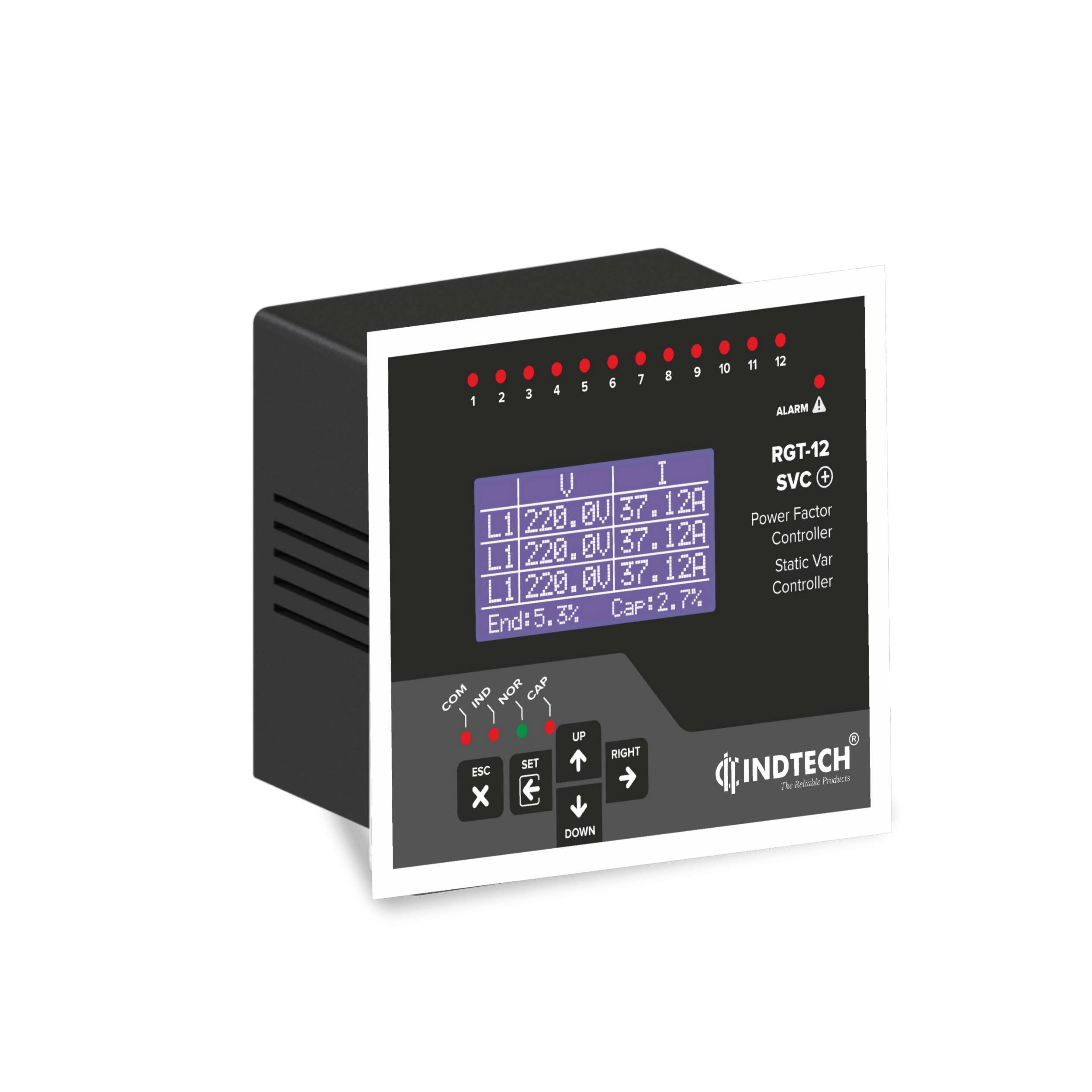

Power Factor Controller
Operating Power : 12VA 50/60Hz.
100V AC to 300V AC
100V AC to 300V AC
Download our complete brochure
We are a world class manufacturer and exporter of Capacitors and Power Factor Correction Capacitors providing the best quality products and services to our customers.
Power Factor relays are used in automatic power factor correction systems to monitor and control the power factor of electrical systems. They help in optimizing the power factor by switching capacitor banks on and off as needed.
- Automatic Control: Automatically adjusts capacitors to maintain the desired power factor.
- Wide Voltage Range: Suitable for a wide range of voltage supplies (90VAC to 500VAC).
- High Accuracy: Provides precise measurement and control of power factor.
- Remote Monitoring: Includes communication interfaces for remote monitoring and control.
- Protection Features: Integrated protection mechanisms for capacitors and other components.
| Operating Voltage (Un) | : | 100V AC to 300V AC |
| Operating Power | : | < 12VA |
| Operating Temperature | : | -20°C to 55°C |
| Rated Frequency | : | 50/60Hz |
| Active Power Accuracy | : | %±1 |
| Reactive Power Accuracy | : | %±2 |
| Display | : | TFT, Touch Colour LCD |
| Connection Type | : | Plug-in terminal connection |
| Panel Hole Sizes | : | 140mm x 140mm |
| Mounting | : | Front panel mounting |
| Protection Class | : | IP41(Front panel), IP20(Body) |
| Operating Altitude | : | < 2000 meters |
